Operating Instructions

Steps to follow to connect irusu vr controller with Android mobiles

Please insert new AAA batteries into the remote.

Power on:press start button until LED light is on(about 3 seconds) , it is acquiesced in VR mode when the joystick is turned on. Mode switching instruction (please press the mode switching button while pressing the @ button with 3-5 seconds) Mouse Mode: @ +A button

Multi-media mode:@+B button

Little chicken gaming mode: @+X button

Apple iCade mode: @+Y button

Remarks:press @ button with 5 seconds to return back to vr mode,mouse mode will only be effective in Android system, iCade mode will only be effective in Apple facility

Pair and connect: after power on, LED indicator will flash, the joystick will enter into the wireless pair mode.

Use the device to search for the address and name of the joystick(SC- B03-XXXx), click then can be connected.pair and connect successfully,LED indicator will turn off , it can connect and match the last wireless device when next time power on.

Power off:press power button until the LED indicator off(about 5 seconds ) the joystick is off.

the joystick will be off automatically if no connecting with wireless device after 5 mins;joystick will power off after 30 mins if there is no operation.

Game operation and access

 VR mode: 3D broadcast sowing ,Orange VR and others VR app. Multi-media mode:This machine has its own player or download cool dog music, cool music etc.

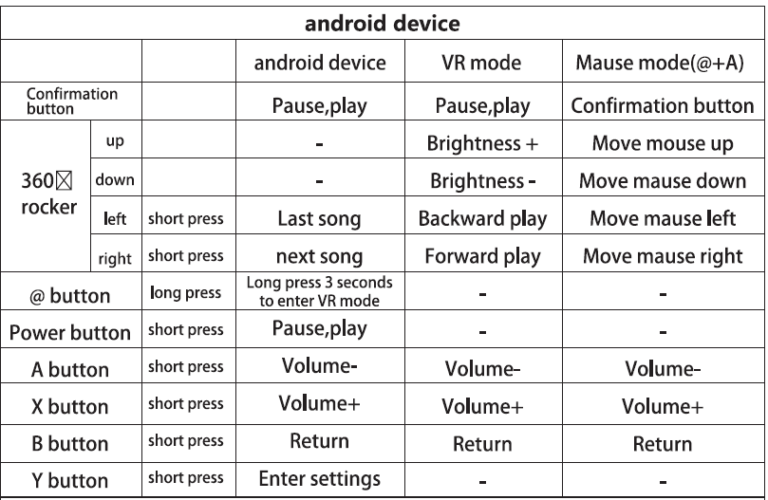

@ Each mode switch and button function are operated as follow sheet:
